Pack 900

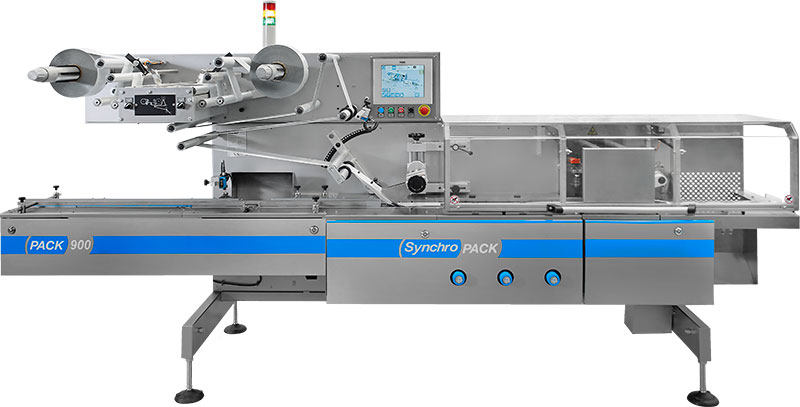

The PACK 900 (top film reel holder) is the Electronic Flowpack Machine proposed by Synchropack to wrap regular products, far medium or high production runs, with semiautomatic or automatic feeding and multiple format changes.Cantilever design, Modular construction, High flexibility & Performance, Ease of operation & Changeover, Low maintenance cost and full electronic control, are the main features of this model of wrapping machine.This common platform has been used to develop multiple configurations that combined with a wide range of available accessories allow the Pack 900 to be adapted to many different products as well as to the most demanding requirements in all kind of production environments.Our large experience also enables us to offer a wide number of accessories and feeding systems for the greatest variety of different products.

FEATURES

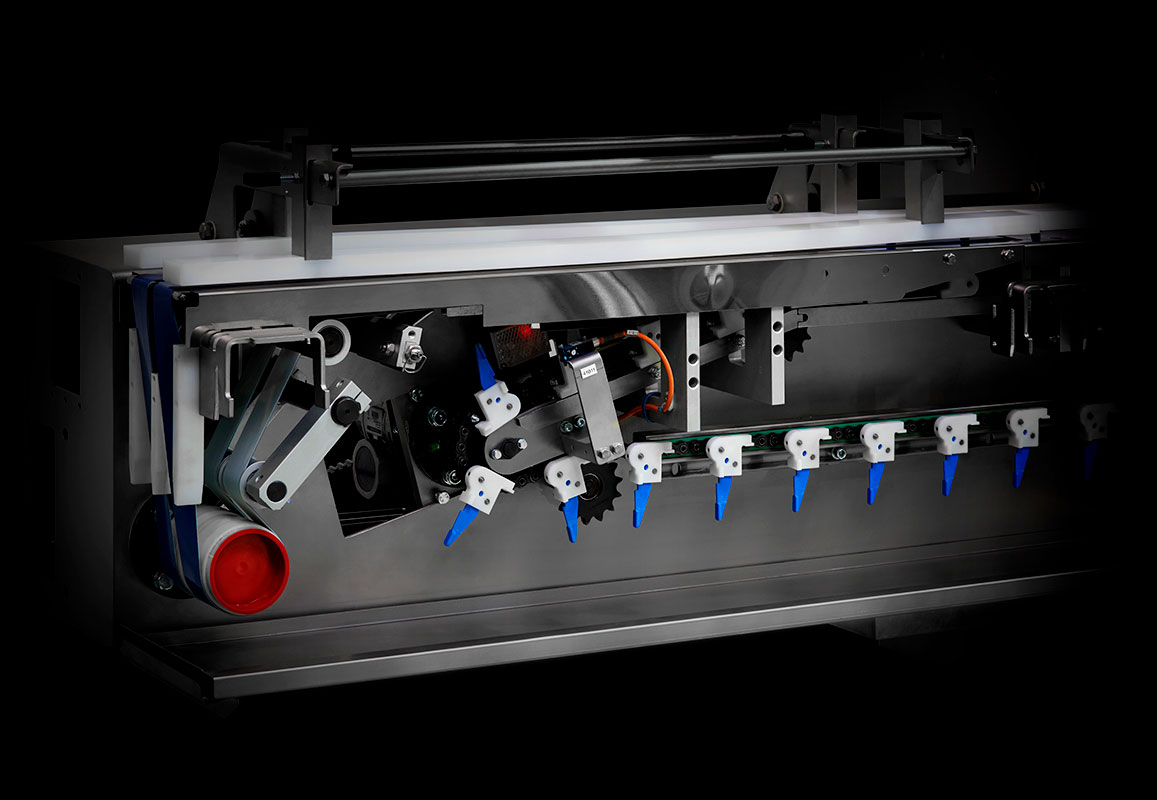

• Pallet conveyorConveyor belt with easily removable pusher paddles to vary the distance between them, without the need of tools.


• Reel holderPneumatically expanding upper reel holder shaft, for a firm hold of the film reels. It provides axial adjustment on the operator’s side, which can be operated while the machine is running.

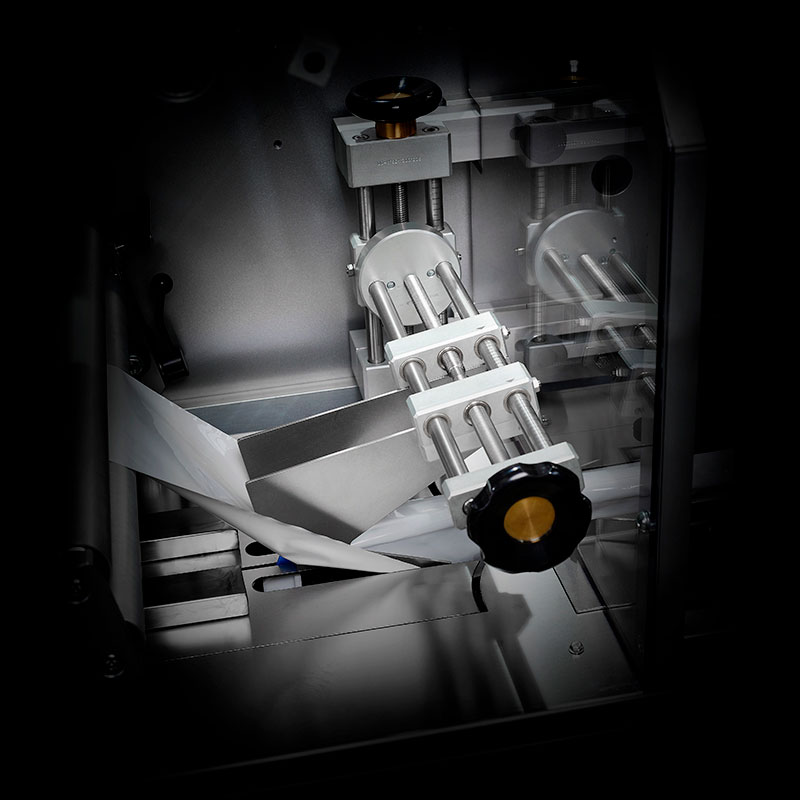

• Universal forming boxUpper universal forming tunnel, adjustable in height, width, angle and position to adapt to the dimensions and shapes of the different products to be wrapped.

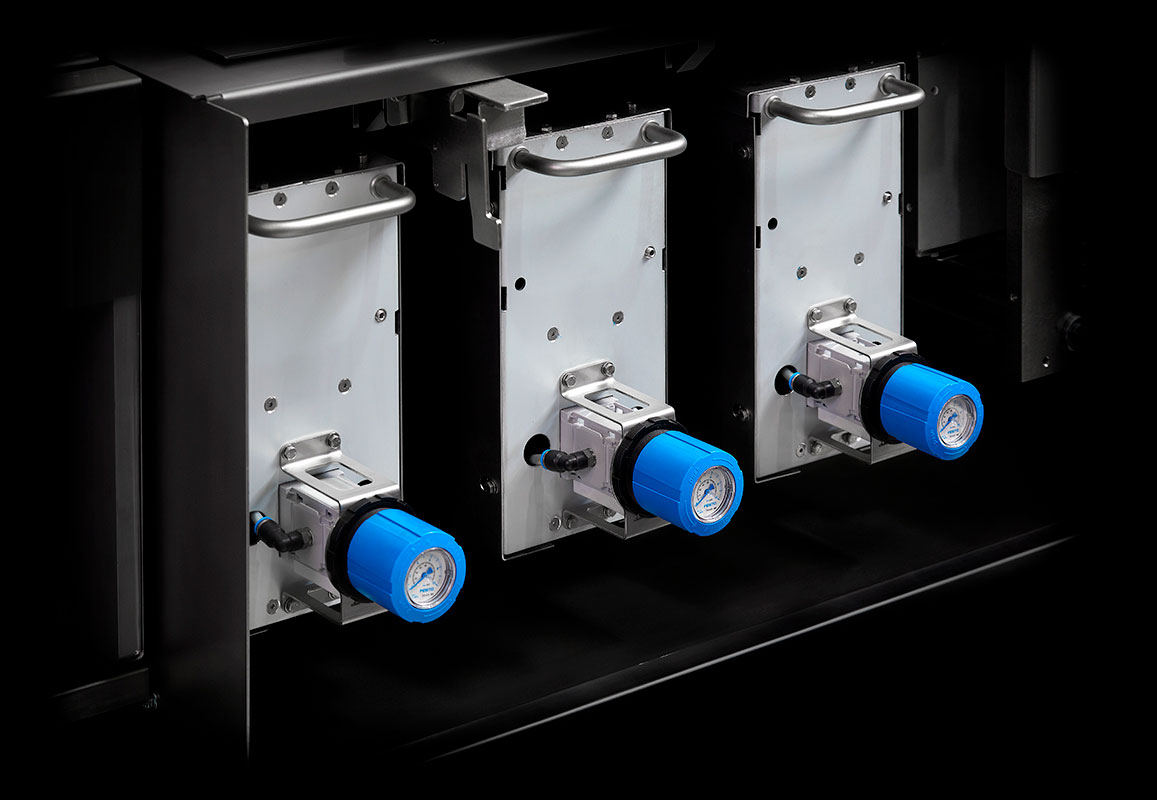

• Longitudinal sealing unitLongitudinal sealing unit of modular type, composed of a pair of cold wheels for film dragging, 2 pairs of heated wheels for sealing and a pair of conical wheels for bending the longitudinal sealing flange.

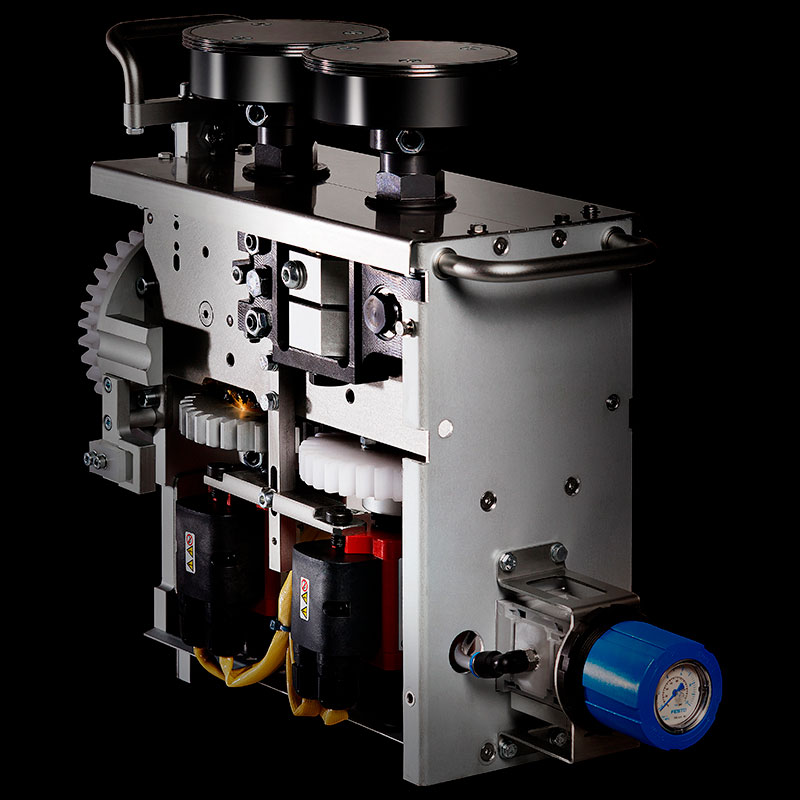

• Longitudinal welding moduleLongitudinal welding module easily removable, simply needing to loosen 2 screws and an electric-pneumatic connector, for maintenance/cleaning operations, with the possibility of quick replacement with a spare module.

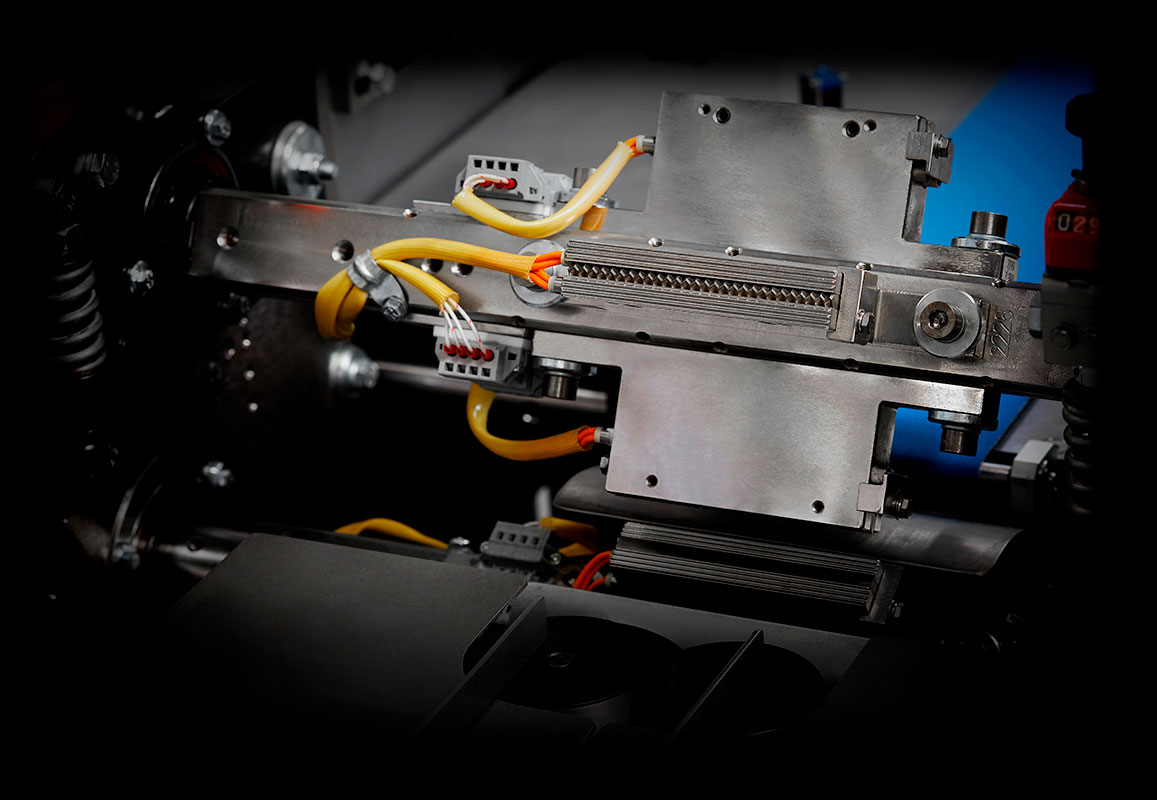

• Cutting and welding unitRotary cutter-welder unit, available in different diameters, different number of jaws per shaft, and different widths and teeth according to the dimensions of the different products to be wrapped and the type of film to be used.

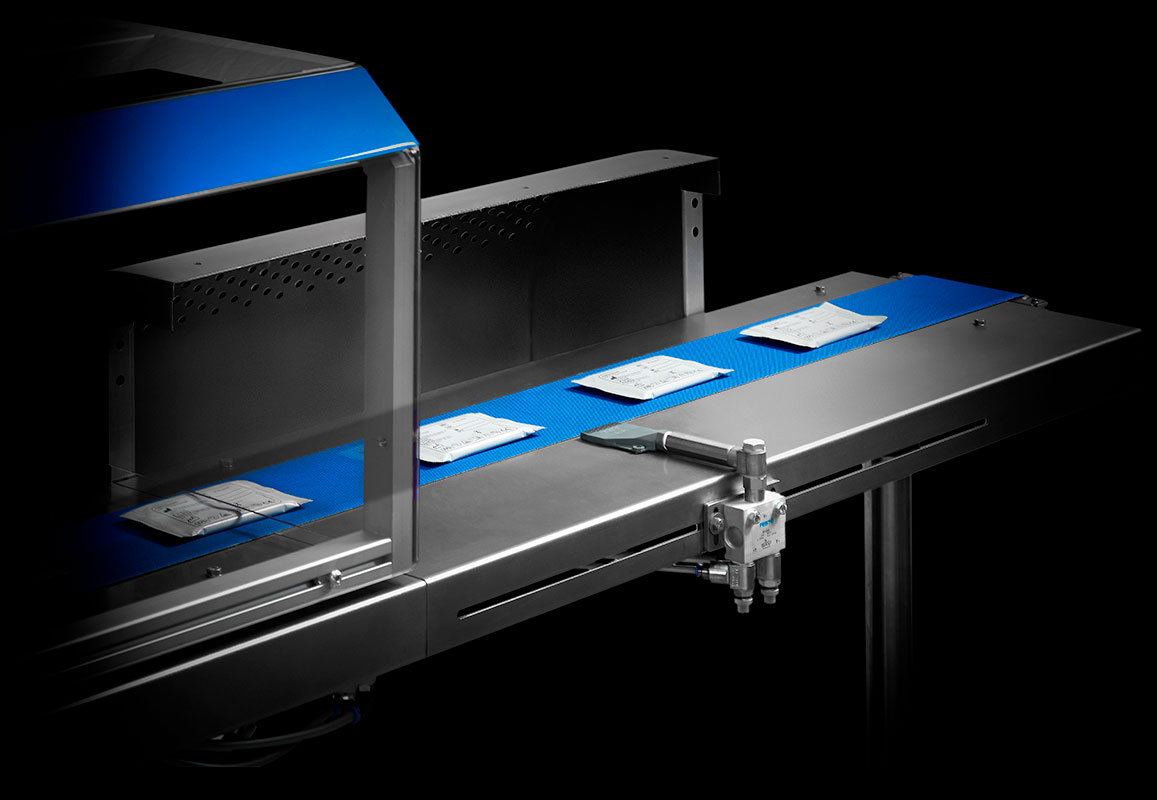

• Outfeed conveyor for the already wrapped product equipped with independent variable speed motorization, adjustable according to the wrapping speed, with detection and rejection system for empty and double bags.

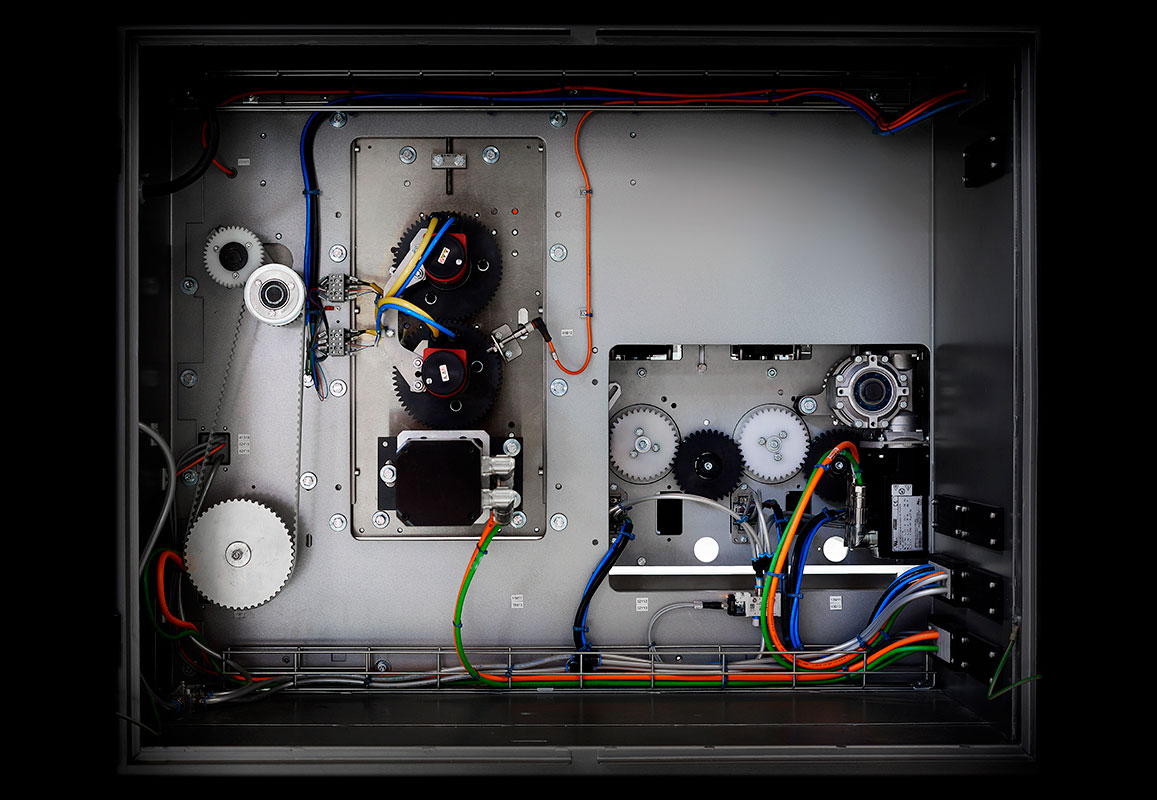

• TransmissionTransmission cabinet.

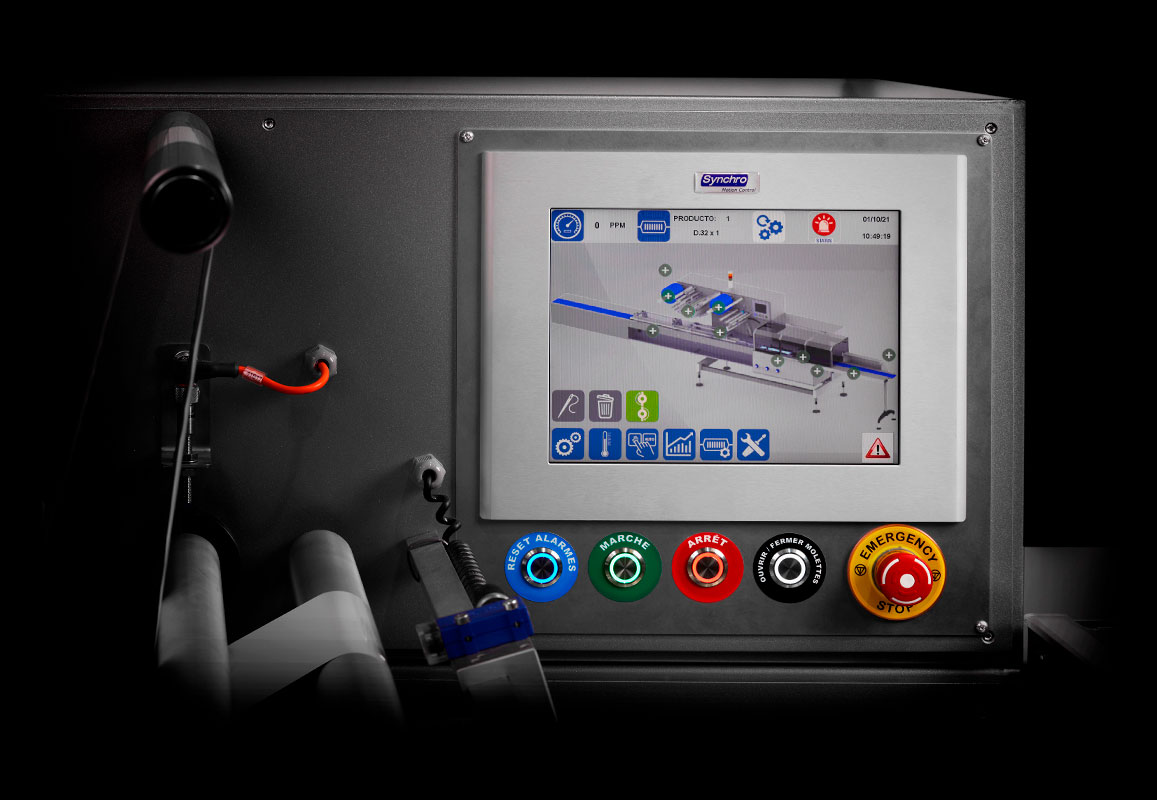

• Touch screen display10.4″ color touch screen for intuitive operator-machine interaction, with the possibility of displaying all operating parameters, warnings, alarms, etc.
